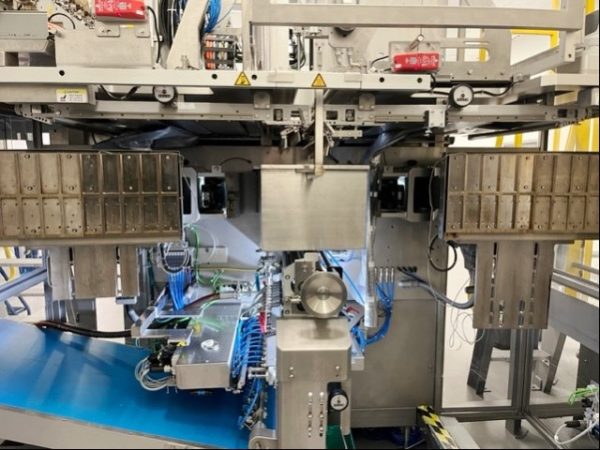

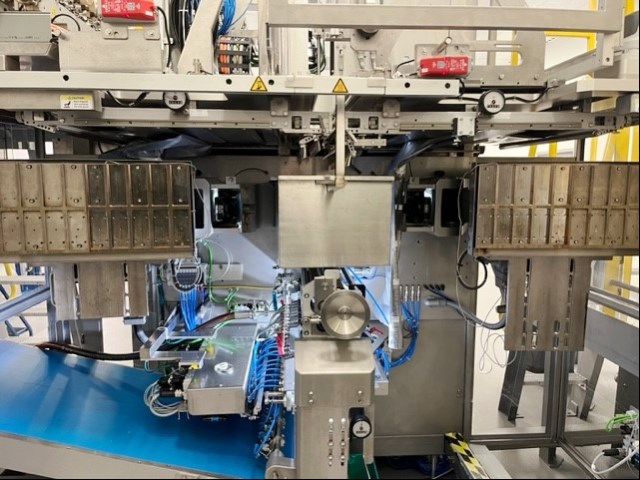

GKS 4-SIDED SEAL LIQUID SACHET MACHINE

GKS 4-Side Seal Liquid Sachet Machine Model FB-640, This 2018 Four-side-seal sachet machines of the newest generation, servo-driven sealing and film pulling, vertical, intermittent motion working principle, Set with Swab Insertion, modular structure easy to combine with upstream and downstream machines, applicable for various products, easy to use and maintain, machine frame and control cabinet made of stainless steel, Bag width: max. 150 MM, Bag length: max. 260 MM, Lanes: 4 -12, Output up to 1,200 packages per min., Sealing force: max. 30,000 N, Film reel width: max. 1.200 MM, Film reel diameter: max. Ø 600 MM, Electrical service: 400 VAC, 50 Hz, approx. 16 kVA, dimensions (l / w / h): 2,600 MM x 1,800 MM x 1,900 MM, weight: approx. . 3,000 kg, PLC Allen Bradley Electrics.
