2019 PRODO-PAK MODEL PV 250 CSW, 10-LANE LIQUID/OINTMENT F/F/S MACHINE

Item: 13491 Categories: ,

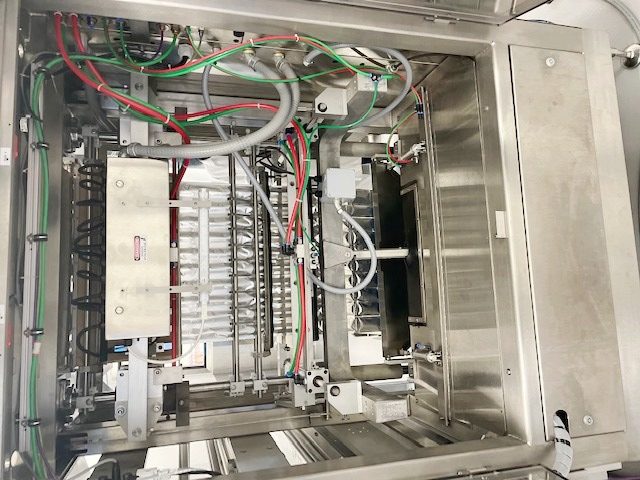

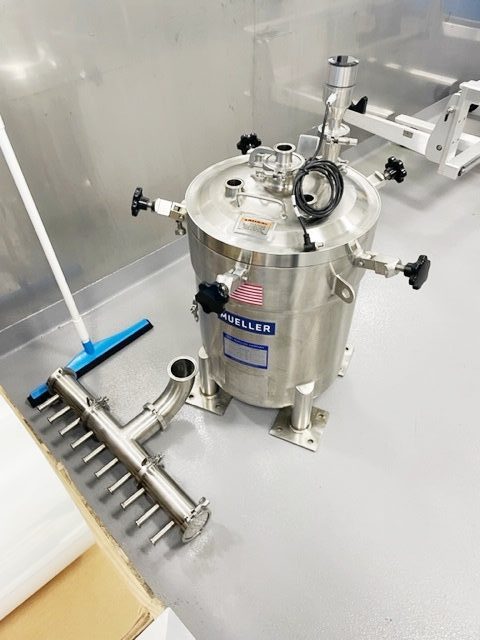

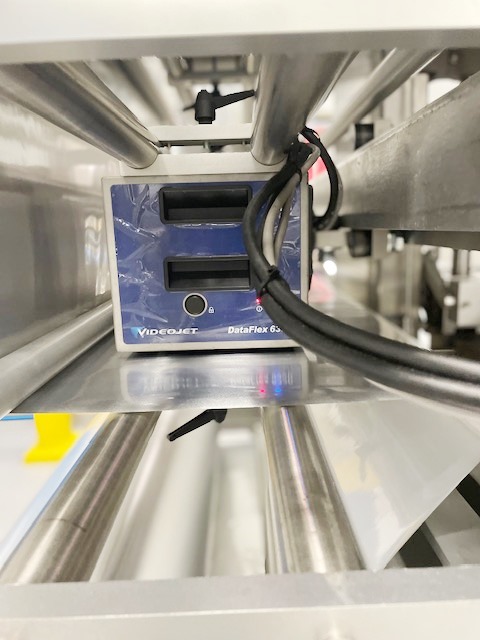

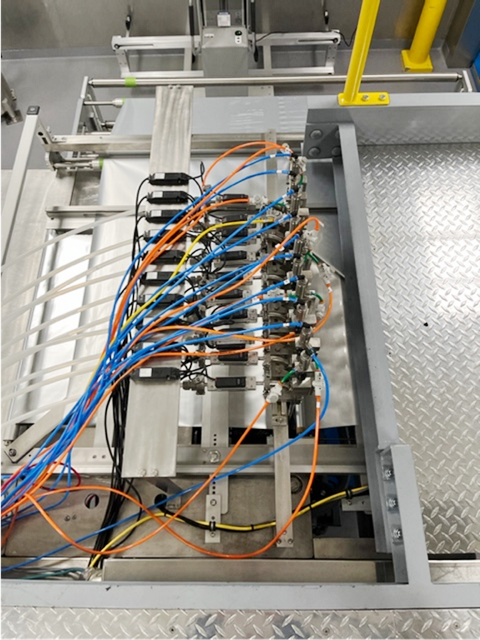

NEW 2019 Prodo-Pak F/F/S Model PV 250 CSW, Flexible Automatic Package forming machine for ointments and liquids. This 10 Lane unit was never put into production and comes with (2) Video Jet printers DATA FLEX 6330 for all 10 lanes, Cybernet console with printers, pitched product conveyor and scaffolding. Web width 43 Inch, Max. OD/Core ID, 18 Inch./ 3 or 6 inch., Package length to 18 Inches. Machine consists of Mechanical, Electrical and pneumatic components, major assemblies are H-Frame, V frame, drive, vertical seal, web unwind, feeder, horizontal die-slitter, stripper, electrical & pneumatic systems. Unit comes with Touch screen,(HMI), Servo Controls, Coders, Perforators, and Tear notches with product hopper,  Mueller Company SS product tank M# F, 80L, 27psi @ 300F, Vac. @15psi with Manifold for filling, NEW Alum-a-Lift 2021, for material rolls, 600 lbs. Capacity, along with Aluminum skid w/rollers, Electrics 208/220V 3Ph, 60 H, 40 Amps.

WATCH A VIDEO
